Manage Cloud Application Backup in the Dashboard

Overview

To manage Infrascale Cloud Application Backup (CAB):

  1. Sign in to your account in the Dashboard.

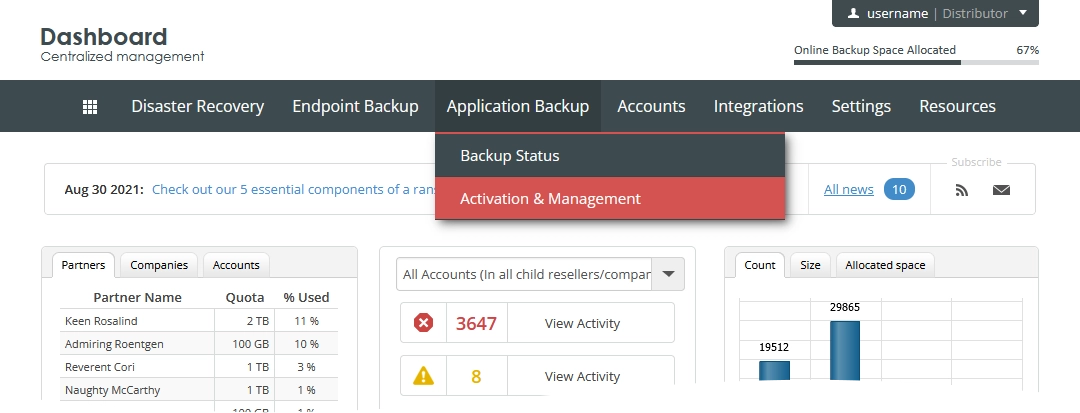

  2. Go to Application Backup › Activation & Management.

    Menu item

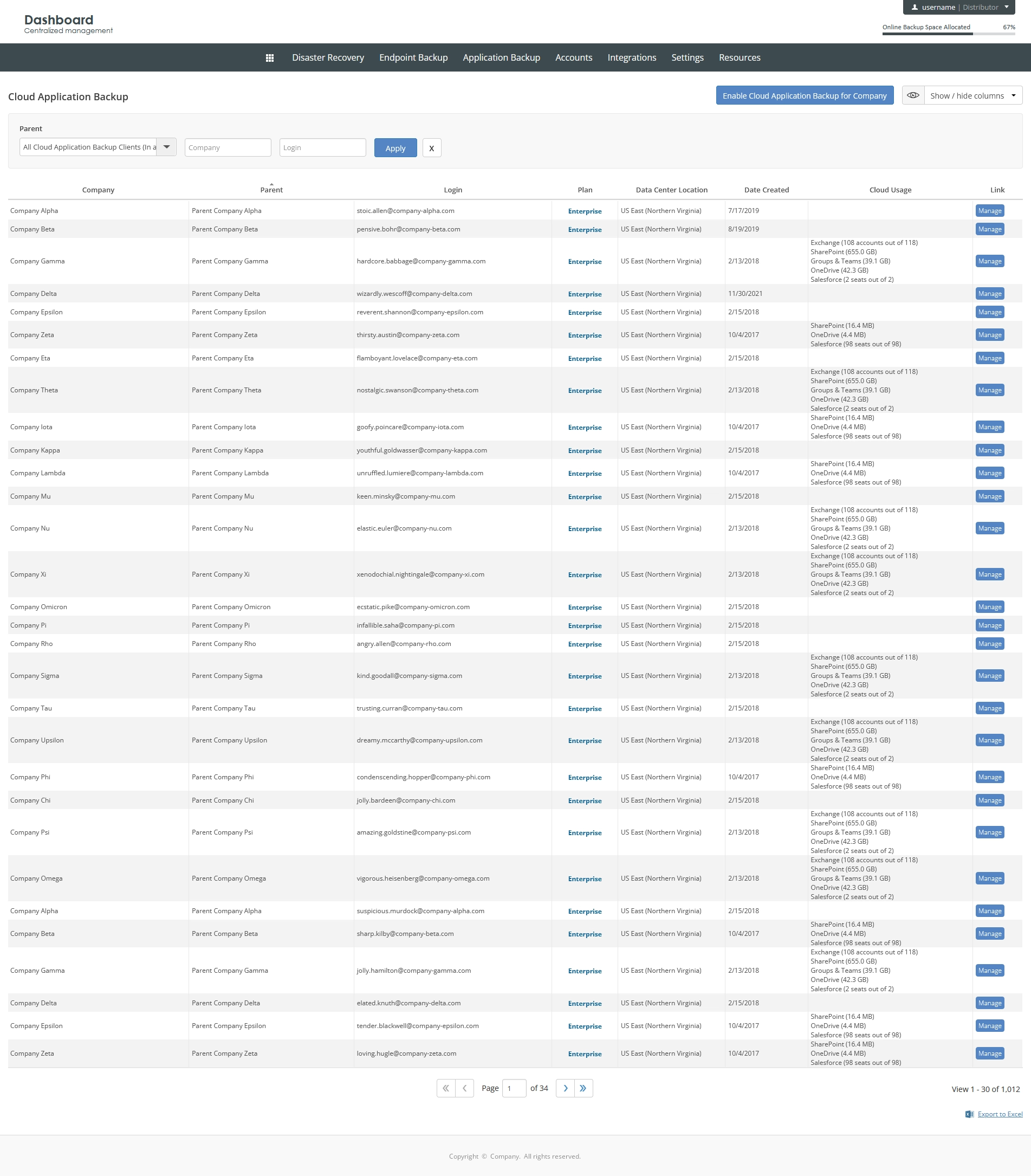

    The consolidated CAB page opens.

Information on the page is presented in the table format with the following columns:

ColumnDescription
CompanyName of the company CAB is turned on for
ParentName of the parent company
LoginUsername of the administrator account used to manage CAB for the company
PlanCAB plan used by the company. Click to change the plan.
Data Center LocationLocation of the AWS data center where the CAB backup data resides
Date CreatedDate when CAB was activated for the company
Cloud UsageApps the company uses CAB for with amount of space in the Infrascale cloud used by the app backup data or number of accounts protected within CAB
LinkLink to access the CAB Management Portal

Consolidated view

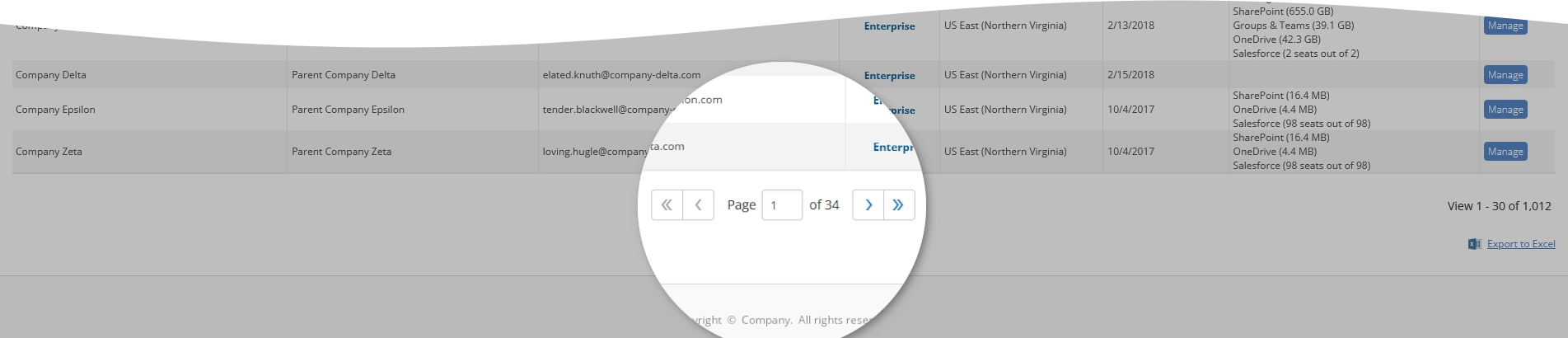

By default, the system shows 30 records in the table per page. To browse over records, use the navigation buttons at the bottom of the page. Also, you can enter a number in the box, and then press Enter to go to the respective page.

Pagination

NameIconDescription
NextNext page iconGo to the next page
PreviousPrevious page iconGo to the previous page
LastLast page iconGo to the last page
FirstFirst page iconGo to the first page

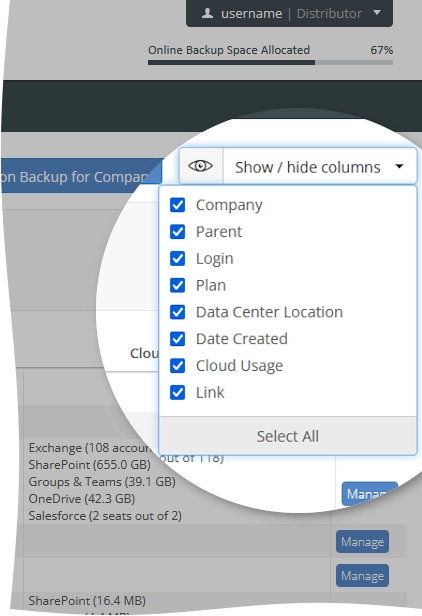

Show or hide data

You can select what data to show on the page. For this, click Show / hide columns on the upper right, and then select or clear the columns you want to show or hide.

Show or hide data

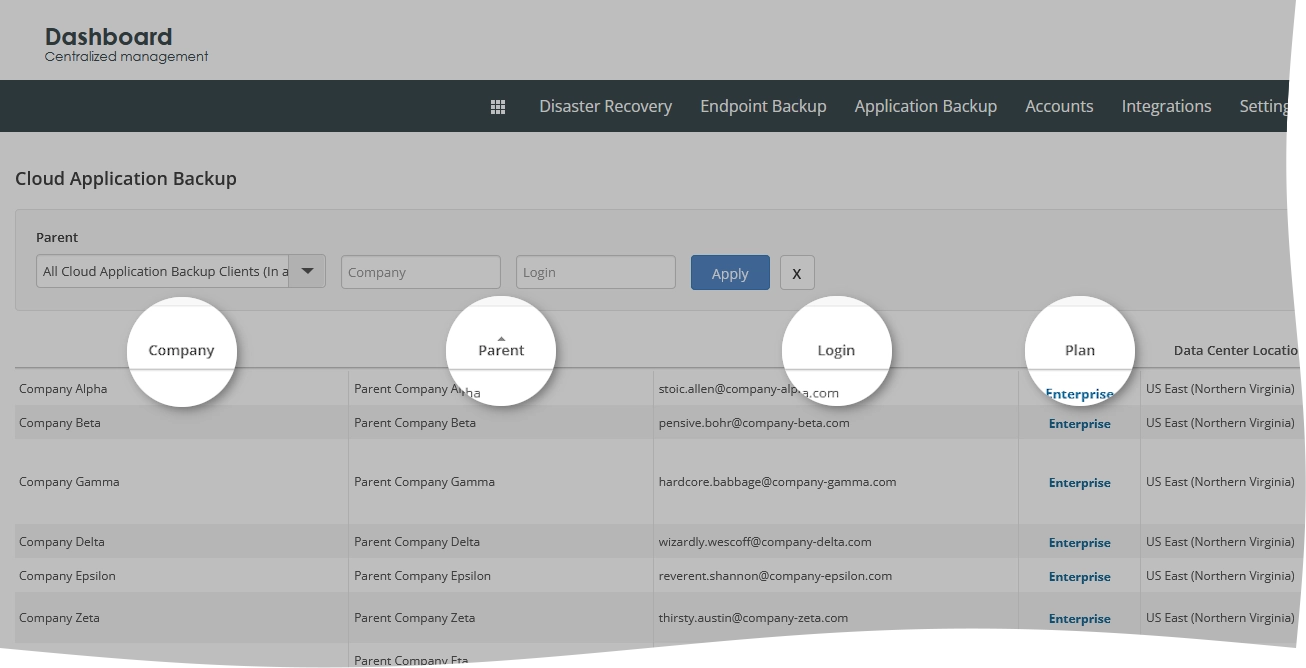

Sort data

You can sort data in the table in ascending or descending order by:

  • name of the company CAB is turned on for (Company),

  • name of the parent company (Parent),

  • username of the administrator account used to manage CAB for the company (Login), or

  • CAB plan used by the company (Plan).

For this, click the name of the corresponding column.

Sort data

Filter data

You can filter data in the table by:

  • parent company (Parent),

  • company CAB is turned on for (Company), and

  • username of the company administrator account (Login).

For this, set the desired filters on the toolbar, and then click Apply.

Filter data

To reset all filters at once, click Clear (Clear filters icon) next to the filters on the toolbar.

Export data

You can export all data (in all visible and hidden columns) regarding CAB shown in the table to an XLS spreadsheet. For this, click Export to Excel on the lower right, and then save the file with the exported data to the desired location.

Export data
