    Backup & Disaster Recovery appliance 2500

    • Summary:Specifications and features of the Backup & Disaster Recovery appliance — model 2500.
    • 1 min read

    Not available for purchase. Not supported.

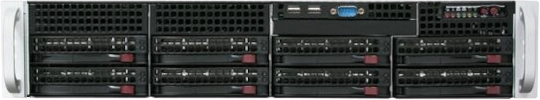

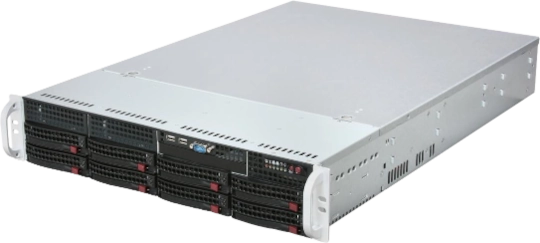

    Appliance view 1 Appliance view 2


    End-of-life
    End of sales Dec 31, 2012
    Hardware warranty 1 Standard – 3 years from the date of purchase.
    Extended – 5 years from the date of purchase.
    End of software support 2 Dec 31, 2018
    Processor
    Model Intel Xeon X3460
    Base frequency 2.8 GHz
    Number of cores 4
    Upgrade N/A
    Memory
    Size 32 GB
    Type DDR3, ECC, REG
    Frequency 1066 MHz
    Upgrade N/A
    Storage
    Catalog drive capacity 240 GB, SSD
    Data drive capacity (raw) 16 TB, HDD, 7200 rpm
    RAID level 5, or
    6
    RAID capacity (total) 12 TB, or
    14 TB
    RAID capacity (usable) 11.17 TB, or
    13.03 TB
    Hot-swap drive bays 8
    Ports
    Ethernet 2 × 1 GbE
    IPMI No
    Cooling
    Processor N/A
    Chassis 3 fans @ 7000 rpm each
    Power supply
    Output 700 W (redundant)
    Voltage 100–240 V
    Frequency 50–60 Hz
    Physical specs
    Chassis 2U
    Width 17.2 in.
    Depth 25.6 in.
    Height 3.5 in.
    Weight 52 lb. (case)

    1. Hardware warranty applies as follows:

      • If warranty is active, we replace hardware parts at our expense.

      • If warranty has ended, but hardware parts are still commercially available, we may replace them at your expense (including shipping).

      • If warranty has ended and hardware parts are not commercially available, we recommend hardware refresh.

      ↩

    2. Unless there is an active, previously signed support contract. ↩
