Explore local Backup & Disaster Recovery appliances

Find and view appliances

To view and access a Backup & Disaster Recovery appliance on your local network from the Dashboard:

  1. Sign in to your account in the Dashboard.

  2. Go to Disaster Recovery › Site Summary.

    Menu item

    The consolidated appliances page opens.

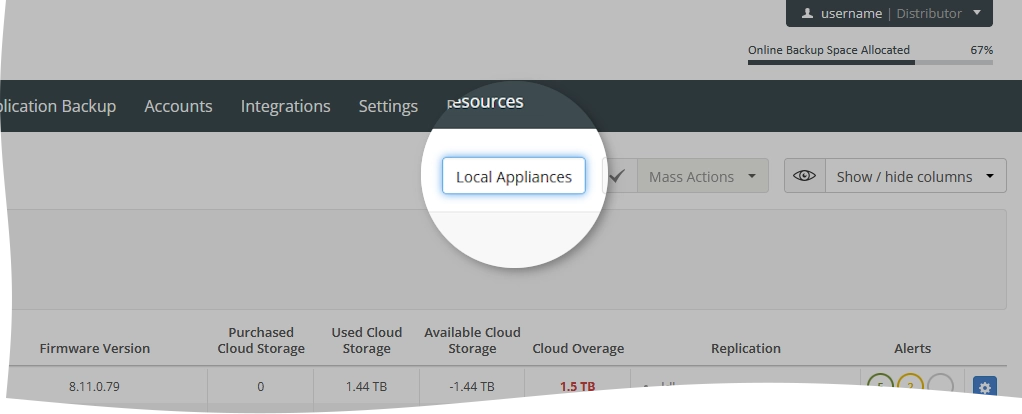

  3. Click Local Appliances.

    Local appliances action

    The local appliances page opens.

Information overview

The page shows the appliances available on your local network with the following details:

ColumnDescription
NameName of the appliance
UUIDUUID of the appliance
ModelModel of the appliance
FirmwareVersion of the appliance firmware
MAC addressMAC address of the appliance
IPLocal IP address of the appliance
IPMI MAC addressMAC address of the IPMI port of the appliance
IPMI IPIP address of the IPMI port of the appliance
Updated UTCDate the appliance firmware was last updated

By default, the system shows 30 appliance records in the table per page. To browse over the appliances, use the navigation buttons at the bottom of the page. Also, you can enter a number in the box, and then press Enter to go to the respective page.

NameIconDescription
NextNext page iconGo to the next page
PreviousPrevious page iconGo to the previous page
LastLast page iconGo to the last page
FirstFirst page iconGo to the first page

Sort data

You can sort appliances in the table in ascending or descending order by:

  • name of the appliance (Name),

  • UUID of the appliance (UUID),

  • model of the appliance (Model),

  • version of the appliance firmware (Firmware),

  • MAC address of the appliance (MAC address),

  • local IP address of the appliance (IP),

  • MAC address of the IPMI port of the appliance (IPMI MAC address),

  • IP address of the IPMI port of the appliance (IPMI IP), or

  • date the appliance firmware was last updated (Updated UTC).

For this, click the name of the corresponding column.

Filter data

You can filter the appliances in the table by:

  • name of the appliance (Appliance Name), and

  • local IP address of the appliance (Local IP).

For this, set the desired filters on the toolbar, and then click Apply.

To reset all filters at once, click Clear (Clear filters icon) next to the filters on the toolbar.

Access appliance

To access the Management Console of the appliance, click the name or the IP address of the appliance.
